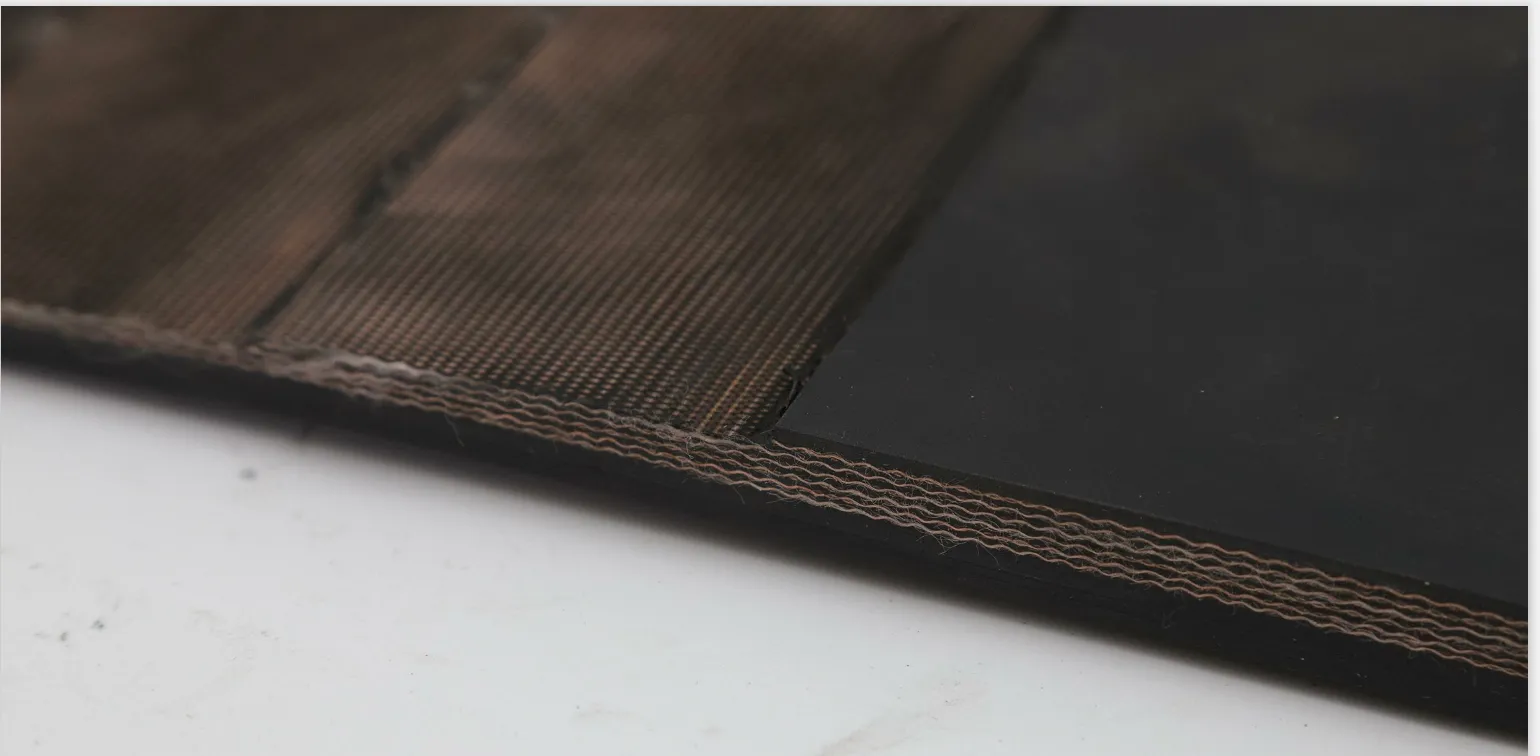

Fabric core tubular conveyor belt

Inquire Now Next Product

Product Description

Structure: the cord body uses high strength canvas or steel wire as skeleton and high strength, abrasion resistant rubber materials as the cover. When it is working, the belt shape turned from flat to U shape, finally roll in to pipe type to achieve the enclosed transportation.
Usage: it is suitable for transporting the materials which are strict requirement for environmental protection and flexibility in three dimensional space, such as coals, mines, ports, electricity, metallurgy, construction, grains etc. There is many advantages of enclosed transportation, such as without materials flying, no affected by natural conditions, no influence on environment, flexibility, large angles of inclination, transport materials there and back.

Specification:

Diameter of pipe(mm)	Basal area()(75%)	Belt speed(m/min)	Trandportation capacity(m³/h)
150	0.015	122	96
200	0.025	132	182
250	0.04	142	342
300	0.05	152	442
350	0.065	174	695
400	0.107	201	1295
500	0.154	252	2090

Fabric core tubular conveyor belt

1.Cover Grades

Grades of cover	Tensile strength/Mpa	Elongation at break%	Abrasion/mm³
L	15	350	200
D	18	400	100
H	24	450	120
H1	25	450	90
H2	28	450	90
H3	30	450	90
H4	35	450	90

2.Full thickness tensile performance

The vertical full thickness strength of belt is not smaller than the specified type in the form below. The minimum full thickness tensile strength (N/mm) = specified belt type

specified belt type	160	200	250	315	400	500	630
specified belt type	800	1000	1250	1600	2000	2500	3150

Fabric core tubular conveyor belt

3.The full thickness vertical reference strength elongation of belt is no more than 4%

4.The adherence strength between plies

item	between the fabric plies	between cover and belt cord
item	between the fabric plies	cover thickness between0.8-1.5mm	cover thickness>1.5mm
Average of sample N/mm	8.0	5.0	6.0
Minium of sample N/mm	7.0	4.5	5.5
