Steel cord conveyor belts are produced through a controlled industrial sequence that combines steel cord preparation, rubber calendering, cord alignment, belt assembly, and vulcanization. In practical terms, the process turns high-tensile steel cords into a reinforced belt core that can carry heavy loads over long distances with low elongation and stable tracking. Steel Cord Conveyor Belts Manufacturer haichuan provides a useful reference point for understanding how this production chain is organized in real manufacturing settings. How Steel Cord Conveyor Belts Are Produced matters because production accuracy directly affects belt life, splice reliability, and maintenance cost.
Before a plant can manufacture a steel cord conveyor belt, it needs a defined belt specification, cord grade, rubber compound data, and curing plan. The starting point is usually the application: mining, port handling, long-distance bulk transport, or steep-incline conveying. Those use cases determine cord diameter, belt width, cover thickness, adhesion requirements, and the allowable elongation range.
The steel cord conveyor belt manufacturing process also requires process control equipment, not just raw materials. Typical production depends on calendering lines, tension-controlled cord laying equipment, bonding layers, and vulcanization presses or continuous curing systems. Quality planning should include incoming inspection, dimensional checks, adhesion testing, and visual defect control at each stage.
| Item | Typical role in production | Why it matters |
|---|---|---|
| High-tensile steel cord | Main tensile member | Controls strength and elongation |
| Rubber skim compound | Bonds cord to belt body | Affects adhesion and fatigue resistance |
| Cover rubber | Protects against impact and abrasion | Impacts service life |
| Calendering line | Applies rubber layers | Controls thickness uniformity |
| Cord laying system | Positions cords in parallel | Prevents skew and spacing errors |
| Vulcanization press | Crosslinks rubber | Fixes final belt structure and properties |

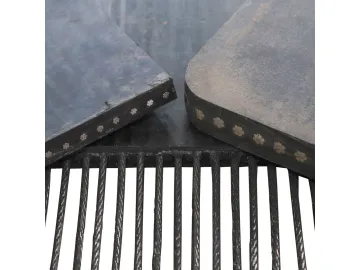

A steel cord conveyor belt is a reinforced rubber conveyor belt that uses parallel steel cords as the load-bearing carcass. The steel cord conveyor belt manufacturing process generally starts with cord preparation, then moves to rubber calendering, cord embedding or positioning, assembly, vulcanization, inspection, and packaging. This sequence is designed to keep cord spacing, rubber adhesion, and final belt thickness within specified tolerances. If those variables drift, the belt may show reduced splice performance, cover separation, or uneven tracking during service.
The first stage is preparing the steel cords to the specified length, coating condition, and surface cleanliness. Manufacturers inspect cord diameter, tensile performance, twist stability, and surface quality before the cords enter the belt line. Any corrosion, broken filaments, or inconsistent coating can reduce bonding performance in later stages.
What to do:
Why this matters:
Steel cord belts depend on parallel load transfer. A small deviation in one cord can create uneven stress distribution across the belt width. That unevenness can raise splice stress and reduce fatigue life in long-distance conveying.
Common defects to avoid:
After cord preparation, the rubber compound is mixed and passed through a calendering line to create skim rubber and cover layers. Rubber calendering for conveyor belts is a key stage because it determines layer thickness, surface finish, and compound distribution. The skim rubber must fully surround the steel cord during bonding, while the cover rubber must protect the belt from abrasion, impact, and cut damage.
The calendering stage is usually controlled through gap settings, temperature control, and thickness measurement. In practice, manufacturers monitor layer thickness because a thin skim layer can weaken adhesion, while an excessively thick layer may waste material and alter belt flexibility. This is one of the main places where process discipline affects both quality compliance and material cost.
Common defects to avoid:
Once the rubber layers are ready, the steel cords are aligned in a parallel arrangement and embedded or sandwiched in the belt structure. The cords must remain straight, evenly spaced, and under consistent tension. This is critical because the belt’s tensile performance comes from the cord array, not from the rubber alone.
The belt build-up stage also defines the final structure of the product. A typical steel cord conveyor belt includes the top cover, steel cord layer, skim rubber around each cord, and bottom cover. That structure is what gives users the low elongation required for long conveying distances and high-tension drives.
The structure usually includes a top rubber cover, a steel cord reinforcement layer, a bottom rubber cover, and adhesion layers that bind the cords into the belt matrix. The cords run longitudinally along the belt length, which allows the belt to carry high tensile loads with much lower stretch than textile reinforcements. The rubber layers protect the cords from moisture, wear, impact, and chemical exposure. This arrangement is why steel cord belts are common in high-load and long-distance conveying systems.
Manufacturers may prepare belt ends or production joints so the finished belt can be spliced correctly at installation. The production stage must leave enough geometric consistency for later field splicing and tensioning. If the belt edges, cord positions, or layer transitions are poorly controlled, the splice area can become a weak point during service.
Tensioning and splicing steel cord belts are closely linked to manufacturing accuracy. A belt with stable cord spacing and uniform adhesion is easier to splice under controlled conditions. That lowers installation risk and helps maintenance teams keep joint quality consistent across multiple installations.
The vulcanization process in conveyor belt manufacturing is the stage that transforms the assembled belt into a finished product with stable mechanical properties. During vulcanization, heat and pressure cause the rubber compound to crosslink, fixing the belt structure and improving strength retention, elasticity balance, and wear resistance. Temperature, pressure, and time must be controlled carefully because under-curing and over-curing can both reduce performance.
In a typical plant setup, vulcanization also locks the bond between the cords and rubber layers. The process is not just about hardening rubber; it is about creating a durable interface between the steel cords and the elastomer matrix. If that interface is weak, the belt may pass a visual check but fail later under repeated flexing and impact loading.
Quality-control checkpoints during vulcanization:
After curing, the belt undergoes trimming, surface inspection, marking, and final testing. Quality control may include dimensional measurement, cover thickness checks, cord spacing verification, and adhesion testing. Some producers also run tensile or fatigue-related evaluations based on the intended duty class.
The inspection stage is where manufacturers confirm compliance with contract specifications and internal standards. For professional buyers, this is also where delivery risk management starts, because a belt that fails in final inspection should not be shipped. Good traceability systems record cord batch, compound batch, cure cycle data, and test results for each belt roll.
Steel cord belts are chosen when the application needs high tensile strength, low stretch, and stable operation over long distances. Compared with textile constructions, steel cord reinforcements usually deliver lower elongation under load, which helps maintain tension control in extended conveying systems. That advantage becomes important in mining corridors, port terminals, and other systems where alignment and tension stability affect uptime.
Performance indicators that buyers usually evaluate include:
Steel cord belts can also improve system economics when a conveyor line operates under high tension or long route length. A lower elongation belt may reduce adjustment cycles, while stronger carcass construction can support larger spans between transfer points. For buyers comparing steel cord conveyor belt pricing, the right cost model is not just purchase price but total installed cost, splice maintenance, and service life.
It works by converting discrete steel cords into a reinforced rubber structure through controlled alignment, rubber embedding, and vulcanization. The cords provide tensile capacity, the rubber compounds provide bonding and protection, and the cure cycle fixes the final mechanical structure. The process is effective only when each stage is controlled with measurable parameters such as tension, thickness, temperature, and adhesion performance.
Quality control is one of the main differences between stable production and inconsistent production. A manufacturer should verify incoming raw materials, cord tension during assembly, rubber thickness after calendering, and cure cycle data during vulcanization. Those checkpoints reduce the chance of hidden defects that are hard to detect after shipment.
A practical QC system usually includes traceability from raw cord lot to finished roll. That matters for claims handling, because it allows the plant to isolate whether a defect came from material variation, process drift, or installation damage. For industrial buyers, that traceability lowers the risk of production interruption if an issue appears in service.
| Defect | Likely cause | Prevention method |
|---|---|---|
| Cord misalignment | Tension instability or setup error | Use calibrated laying equipment |
| Poor adhesion | Contaminated cord or incorrect cure | Clean surfaces and control vulcanization |
| Thickness variation | Roll gap drift or unstable compound flow | Monitor calender settings and gauge output |
| Edge distortion | Poor belt handling during build-up | Improve tension and support during transfer |
| Blistering after cure | Trapped air or moisture | Control pre-cure drying and assembly cleanliness |
These defects matter because they affect both performance and field reliability. For example, poor adhesion can lead to cord-rubber separation under repeated loading, while edge distortion can complicate tracking and splicing. A disciplined process reduces rework, scrap rate, and warranty exposure.
Steel cord belts and fabric belts solve different conveying problems. A textile belt is usually easier to fabricate, often lighter, and can be adequate for moderate loads and shorter lines. A steel cord belt is designed for higher tension, lower elongation, and more demanding long-distance applications, which is why its production route is more specialized.
| Factor | Steel cord conveyor belt | Fabric conveyor belt |
|---|---|---|
| Reinforcement | Parallel steel cords | Textile plies or woven fabric |
| Elongation | Lower under load | Higher under load |
| Production complexity | Higher | Lower |
| Splice preparation | More demanding | Generally simpler |
| Best use case | Mining, long distance, high tension | Short to medium conveying routes |
| Material sensitivity | Higher QC requirement | Lower structural sensitivity |
From a production standpoint, steel cord belts need stricter control of cord positioning, bond quality, and cure consistency. Fabric belts are usually more tolerant of minor variation because their reinforcement architecture distributes stress differently. This is why steel cord conveyor belts vs fabric conveyor belts is not just a material choice; it is a process and application choice.
When evaluating a Steel Cord Conveyor Belts Manufacturer, buyers should ask for measurable evidence rather than broad claims. Relevant items include tensile test reports, adhesion test data, cord specification sheets, calendering thickness control records, and vulcanization cycle logs. If the supplier cannot provide process records, it becomes harder to assess quality compliance and delivery risk.
The company profile at haichuan is relevant because it helps buyers understand whether the manufacturer positions steel cord belts as a core product or as a secondary offering. In industrial sourcing, a focused production line often matters more than promotional language. A plant that documents incoming QC, in-process checks, and final inspection is easier to audit and easier to compare across bids.
If you are comparing vendors for mining or long-haul systems, ask about the plant’s defect prevention process and rework rate. Ask how they handle cord batch changes, cure deviations, and splice-area consistency. These details often reveal more than catalog photos or general descriptions.
The economic case for steel cord belts depends on system duty, service interval, and downtime cost. In many heavy-duty systems, the buying decision is not based only on initial steel cord conveyor belt pricing but on how often the belt must be retensioned, repaired, or replaced. Lower elongation can reduce adjustment frequency, which may lower maintenance labor and shut-down losses over time.
A simple TCO view should include belt purchase price, installation labor, splice work, scheduled shutdowns, and expected service life. If a steel cord belt reduces re-tensioning events and can better tolerate long-distance loading, the higher upfront price may be offset by lower intervention cost. This is especially relevant in mining and bulk handling lines where one hour of downtime can exceed the cost difference between belt types.
| Cost element | Steel cord belt impact | Why it matters |
|---|---|---|
| Initial purchase | Usually higher than fabric belt | Affects capex |
| Installation | More specialized | Influences labor cost |
| Retensioning | Often lower frequency | Reduces maintenance time |
| Splicing | More technical | Affects shutdown planning |
| Service life | Can be longer in high-tension duty | Reduces replacement cycle cost |
For procurement teams, the best choice is rarely the cheapest roll price. It is the belt that matches the route length, load profile, pulley configuration, and maintenance capacity. That is why production quality and lifecycle cost should be reviewed together.
Choosing the right belt starts with the conveyor’s actual operating data. Buyers should confirm maximum operating tension, belt width, material type, impact conditions, incline angle, and expected duty hours. Those values determine the cord construction, rubber cover grade, and splice design.
A practical selection checklist should also include supplier process capability and documentation quality. If the belt will be installed in a mining system, for example, the supplier should show experience with abrasion resistance, impact loading, and long-distance tension control. The best product is the one that matches the application and can be manufactured with repeatable process control.
For buyers, steel cord conveyor belts explained means understanding that the product is a system, not just a rubber strip with metal inside. Its value comes from the interaction of cord quality, rubber formulation, process control, and vulcanization accuracy. If one part of that system is weak, the final belt may not deliver the intended service life.
For engineers, the production method matters because it determines how the belt will behave in the field. A well-made belt can improve tension stability, reduce stretch-related maintenance, and support demanding conveyor layouts. A poorly controlled belt can create hidden risks that only appear after installation, when correction is far more expensive.
How Steel Cord Conveyor Belts Are Produced is best understood as a controlled sequence of cord preparation, rubber calendering, belt assembly, vulcanization, and inspection. The product’s main advantages come from its structure: steel cords provide tensile capacity, rubber layers provide protection and bonding, and curing fixes the final mechanical properties. For heavy-duty systems, that combination supports low elongation, stable troughing, and performance under high tension.
If you are comparing suppliers, focus on measurable process controls, QC records, defect prevention, and total cost of ownership rather than headline price alone. If your conveyor runs long distances or handles mining loads, steel cord construction is often the more suitable option than textile reinforcement. The best next step is to match the belt specification to your operating tension, abrasion level, and splice strategy, then evaluate the manufacturer’s process data before purchase.
A: To select the correct belt, a buyer should share the conveyor’s operating tension, belt width, route length, incline angle, conveyed material, impact level, and expected duty hours. These inputs determine cord construction, cover thickness, rubber compound, and splice design, which are critical for matching performance to the application.
A: The belt is typically made through cord preparation, rubber calendering, cord alignment, belt assembly, vulcanization, and final inspection. Process control at each stage affects adhesion, cord spacing, belt thickness, and final mechanical stability, which directly influence service life and splice reliability.
A: They are best suited for mining, long-distance bulk handling, port conveying, and other high-tension systems where low elongation and stable tracking are important. Compared with fabric belts, steel cord belts are generally better for demanding routes with heavier loads and stricter tension control.
A: Ask for cord specifications, belt structure drawings, adhesion and tensile test reports, cure process records, and raw material traceability. For procurement, it is also important to confirm the supplier’s quality-control checkpoints, defect prevention process, and packaging method before comparing prices.
A: Choose a steel cord belt when the conveyor has high tension, long distance, heavy loads, or a need for lower elongation and better tension stability. Fabric belts are usually simpler and more suitable for shorter or moderate-duty routes, while steel cord belts are preferred when lifecycle cost and uptime matter more than initial price.
